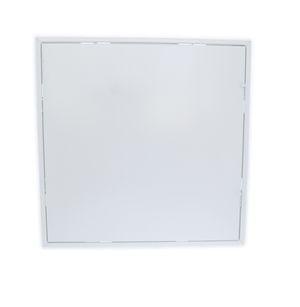

E — Economical Flush Door
360 VRs
E — Economical Flush Door
Assets/Details
Specs — White E Specs Doc (31 KB, DOCX)
Milcor — E Access Door Sub Data (142 KB, PDF)
LEED — LEED Checklist (283 KB, PDF)
Advantages
- All steel construction

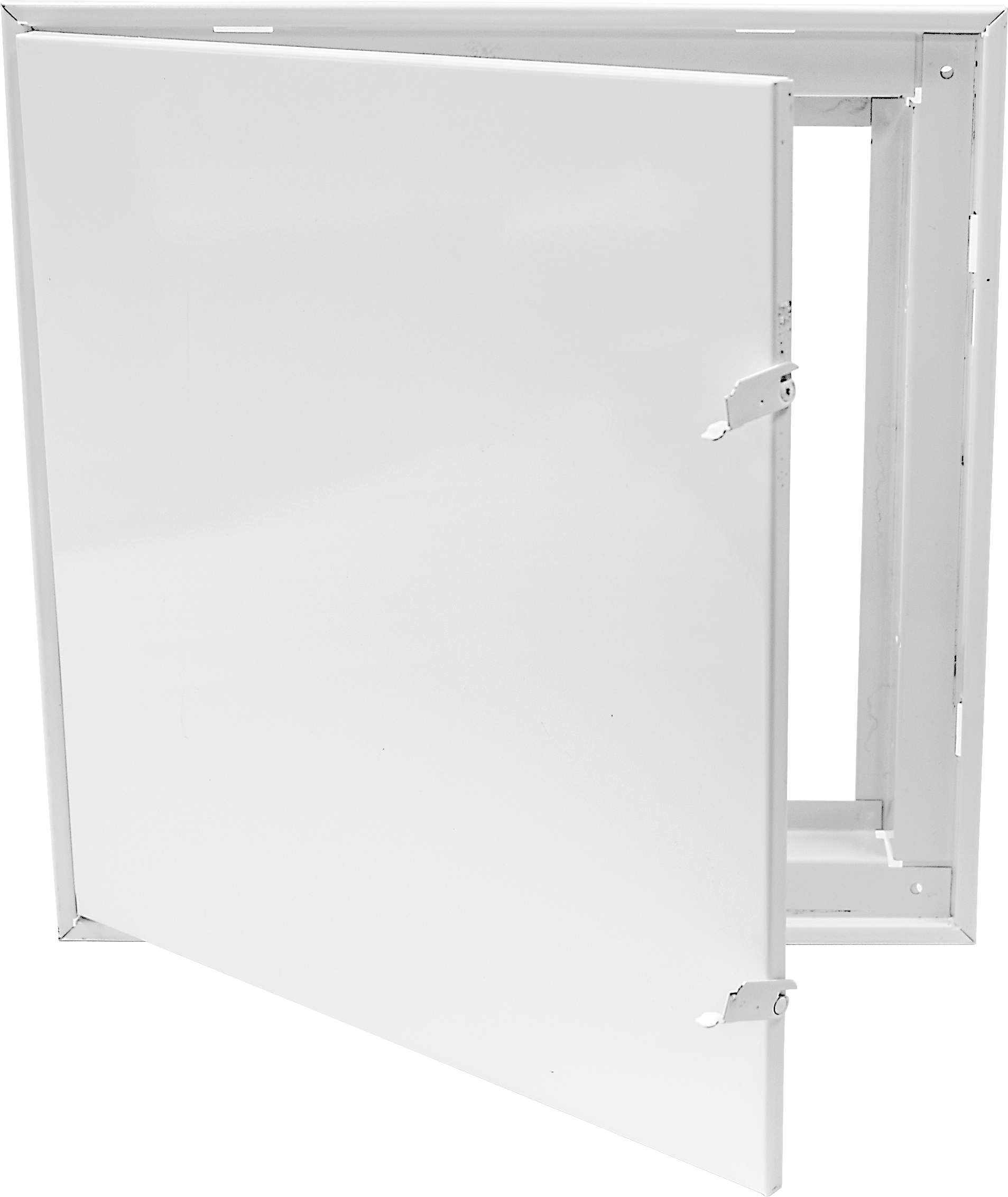

- Flush, removable face with concealed latches and hinges
- 22 gauge face, 24 gauge frame
- Available in bright white finish
Standard Sizes and Model Number
| Size | Model No | No. Cams | Shipping Wt Lbs. |
|---|---|---|---|
| 6" x 6" | 3213006 | 1 | 1.5 |
| 8" x 8" | 3213008 | 2 | 2 |
| 10" x 10" | 3213010 | 2 | 3 |
| 12" x 12" | 3213012 | 2 | 3.5 |
| 14" x 14" | 3213014 | 2 | 4 |
| 16" x 16" | 3213016 | 2 | 5 |
| 18" x 18" | 3213018 | 2 | 6 |
| 24" x 24" | 3213024 | 2 | 9.5 |
