Heat & Smoke Vents

Popular Smoke Vent Options

Fusible Links

The standard is a 165°F UL Listed fusible link on Big Smokys, Low Profile, UL-SEE & STC-50 units, while the standard for the STC-40 & UL-SKY units is a 360°F UL Listed fusible link.

McCabe Link

This is a multipurpose, dual-responsive and repositioning link which reacts when subject to heat and electrical current. (Electro-Thermal Link). Available in 24 volt and 120 volt.

Explosion Vents

Smoke Vents can be equipped to operate as explosion vents.

Motorized or Manual Winch Operation

Smoke vents can be equipped with motor operators for opening and closing the covers from a remote 3-position selector switch.

Metal Roof Curb Mounts

Curbs can be modified to fit most standard metal roof profiles.

Sloped To Maintain Level Operation

Curbs can be sloped to match roof slopes providing a level surface when units are installed.

Overall Product Benefits

Vent for Heat and Smoke

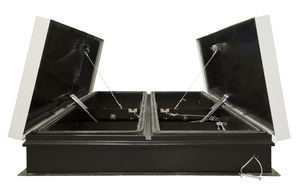

Designed to automatically spring open to approximately 90 degrees in the event of a fire.

Heat and smoke vents can save lives by releasing smoke, decreasing the possibility of deadly smoke inhalation to building occupants. The open covers permit firefighters to douse flames directly from the rooftop location.

The covers are activated by the parting of a single UL listed 165°F or 360°F fusible link (depending on smoke vent style), and automatically lock in the fully open position. Units can be equipped with electrical links that trigger the cover opening when connected to a remote smoke or fire alarm.

Open Against Snow or Wind

Covers are of double-leaf construction, with each leaf equipped with torsion spring operators of sufficient strength to open against a minimum 10 psf snow or wind load.

No Over-Travel

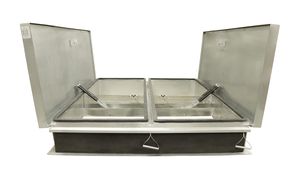

Units are equipped with hydraulic dampeners or gas springs to control opening speed and prevent over-travel.

Wind Uplift Rating

Covers will not open when subjected to a minimum 30 psf uplift pressure. This prevents accidental openings.

Fire Safety

Complies with the requirements of a Class “A” burning brand (UL 790).

Easy Reset

Covers latch automatically. Manual release mechanism resets automatically when covers are closed from the roof line.

Thermal Efficiency

Insulated covers provide a minimum thermal transmittance value of U = 0.093 to reduce heat loss or gain and to prevent condensation.

Weathertight Performance

Covers are fully gasketed for weathertight performance.The dual covers close unto a fixed channel that permits water to flow off the unit without interfering with the cover operation.

Choice of Materials

Most Milcor heat and smoke vents are available in three combinations of materials to meet specific design criteria:

  • All Galvanized
  • All Aluminum
  • Aluminum Cover/Galvanized Curb
