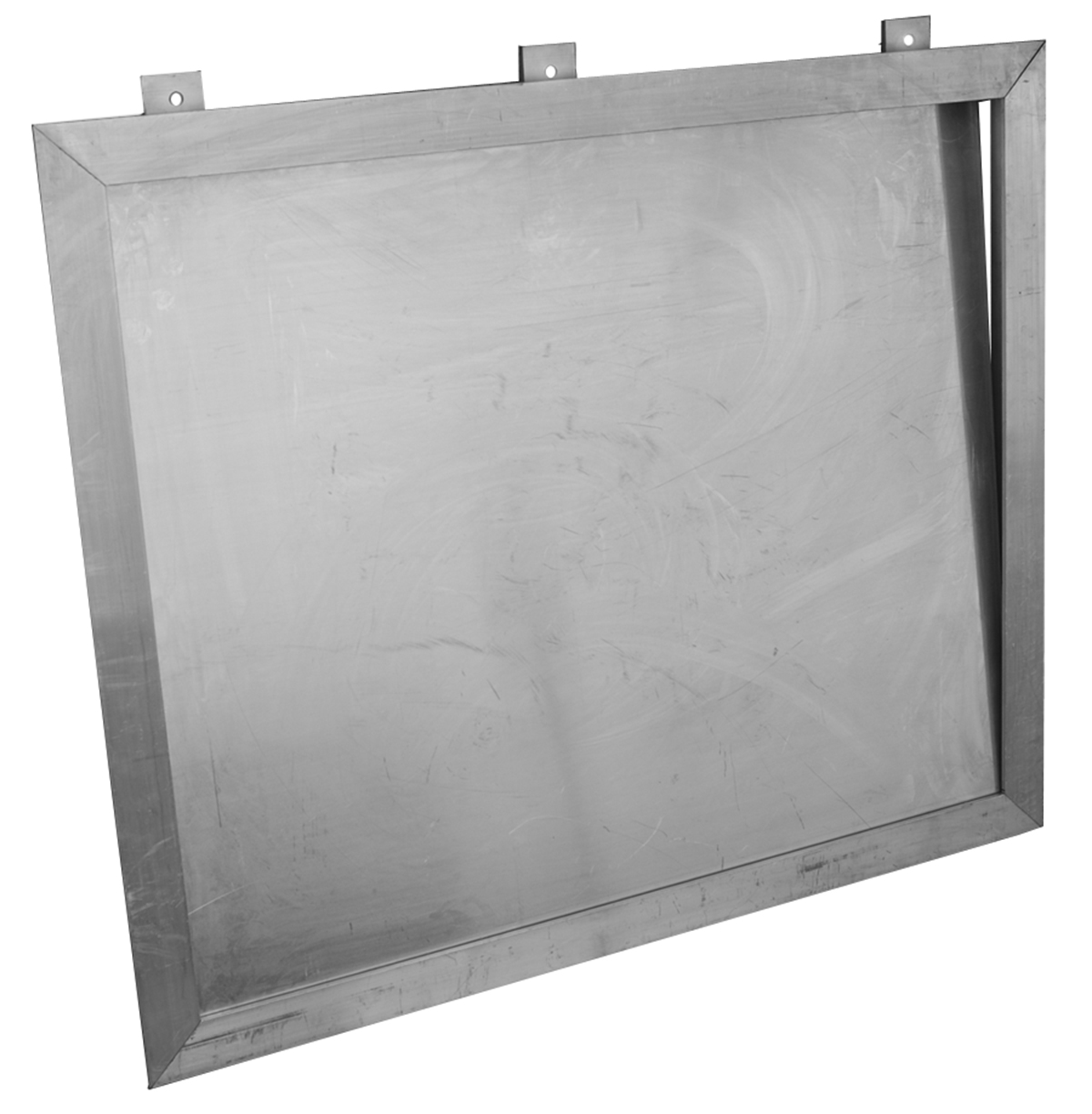

CF — Aluminum Doors for Suspended Ceiling
CF — Aluminum Doors for Suspended Ceiling
Assets/Details
LEED — LEED Checklist (283 KB, PDF)
Submittal Data — SD CF (44 KB, PDF)
Specs — CF Aluminum Access Door for Suspended Ceiling (31 KB, DOCX)
Advantages
- Milcor CF aluminum ceiling access doors provide convenient access to services or controls located in ceilings.
- Units are installed by bolting the hanger brackets to the hanger rods furnished and installed by contractor.
- The aluminum cover and frame with stainless steel hinges produce a strong, lightweight, corrosion-resistant assembly.
- Covers open upward smoothly on continuous hinges.
- Downward opening models are available.
Standard Sizes and Model Number
| Leaf Type | Dimensions** (Center-to-center of angles or tees) | Model | Shipping Weight Lbs. |
|---|---|---|---|
| Single | 2'6" x 2'6" | CF-1 | 30 |
| Single | 2'6" x 3'0" | CF-2 | 35 |
| Double | 2'6" x 2'6" | CF-3 | 40 |
*Add upswing or downswing to product number to identify swing desired.
**Second dimension is on hinge side
