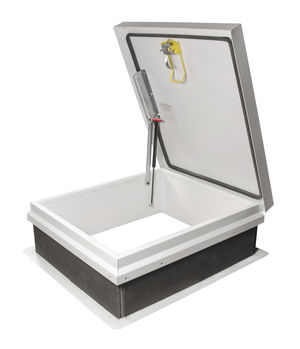

MC_single leaf mounted cover

M-1

Specifications:

  • Material:
    • 14 gauge galvanized steel cover and Curb
  • Finish:
    • Galvanized Steel: White Powder Coat
  • Cover: covers open easily to 90 degrees
    • 14 gauge galvanized steel exterior with 22 gauge galvanized steel liner bonded to core of 1” rigid styrofoam insulation.
  • Curb:
    • 14 gauge galvanized steel with a 12” high curb, integral counterflashing, 3-1/2” wide mounting flanges with pre-drilled holes and 1” exterior fiberboard insulation



  • Gasket:
    • Extruded EPDM rubber gasket adhered to cover
  • Hinges:
    • Integrated Pintle Hinge
  • Lift Assist:
    • Cover operation is assisted by Gas Spring
  • Latches:
    • Slam latch with interior and exterior handles and padlock hasps.
  • Hardware:
    • All hardware is zinc plated (stainless steel hardware optional)
  • Load Capacity:
    •  70 psf

Standard Sizes and Model Number

Model Submittal Data Installation Instructions Specs LEED
M-1 3501-501-9
