Equipment_Access_DoubleLeaf

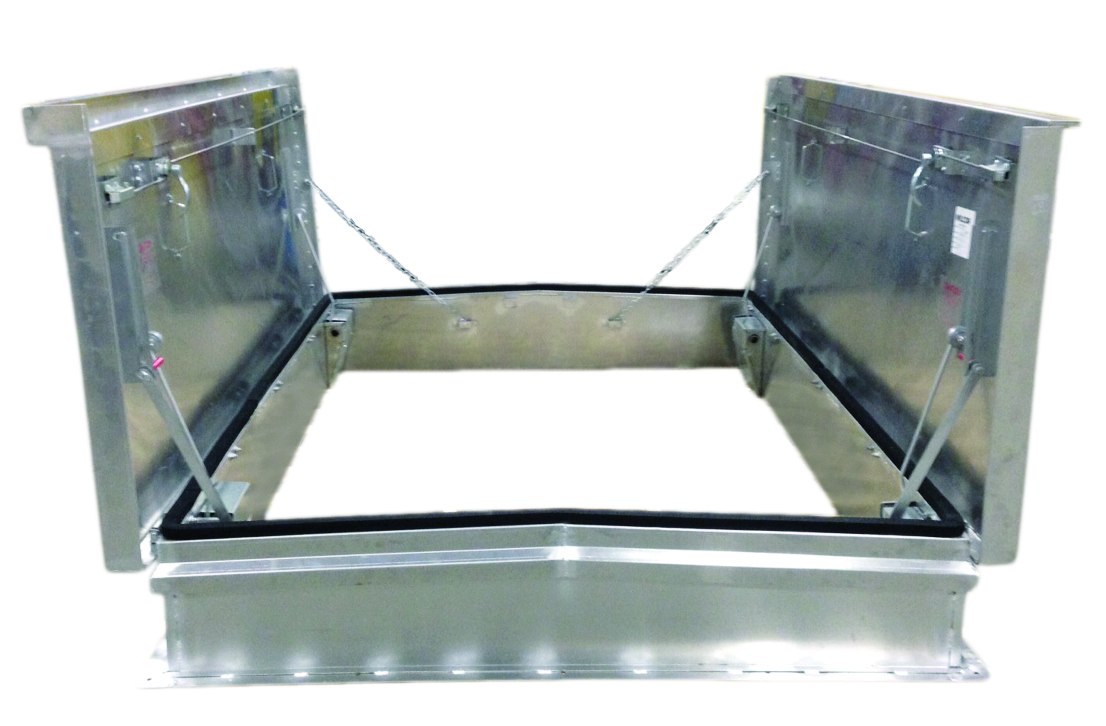

Equipment Access-Double Leaf

Specifications:

  • Material:
    • RB:    14 gauge galvanized steel cover and curb
    • RC:     .090 Aluminum cover and 14 gauge galvanized steel curb
    • RD:     .090 Aluminum cover and curb
  • Finish:
    • Galvanized Steel: Cool White Water Based Enamel Paint
    • Aluminum: Mill Finish
  • Cover: covers open easily to 90 degrees
    • RB:  High-strength composite panels with 14 gauge galvanized steel exterior with 22 gauge galvanized steel liner with 1” fiberglass insulation.
    • RC & RD:   Mill finish .090 aluminum exterior with .063 aluminum liner with 1” fiberglass insulation.
  • Curb:
    • RB & RC: 14 gauge galvanized steel with a 12” high curb, integral counterflashing, 3-1/2” wide mounting flanges with pre-drilled holes and 1” exterior fiberboard insulation
    • RD: Mill finish.090 aluminum with a 12” high curb, integral counterflashing, 3-1/2” wide mounting flanges with pre-drilled holes and 1” exterior fiberboard insulation



  • Gasket:
    • Extruded EPDM rubber gasket adhered to cover
  • Hinges:
    • Steel Pintle Hinge
  • Lift Assist:
    • Cover operation is assisted by enclosed heavy-duty Torsion Coil Spring
  • Latches:
    • Two-point slam latch system for tight, secure closure with interior and exterior handles and padlock hasps.
  • Hardware:
    • All hardware is zinc plated (stainless steel hardware optional)
  • Load Capacity:
    •  40 psf

Standard Sizes and Model Number

Model Materials Dimensions Lbs Submittal Data Installation Instructions Specs LEED
RB-4 Galvanized Steel Cover and Curb 5’ 0” x 11’ 0” 1831
RB-5 Galvanized Steel Cover and Curb 6’ 0” x 11’ 0” 2060
RC-4 Aluminum Cover, Galvanized Curb 5’ 0” x 11’ 0” 1220
RC-5 Aluminum Cover, Galvanized Curb 6’ 0” x 11’ 0” 1332
RC-6 Aluminum Cover, Galvanized Curb 8’ 0” x 8’ 0” 1220
RD-4 Aluminum Cover and Curb 5’ 0” x 11’ 0” 1055
RD-5 Aluminum Cover and Curb 6’ 0” x 11’ 0” 1166
RD-6 Aluminum Cover and Curb 8’ 0” x 8’ 0” 1055
