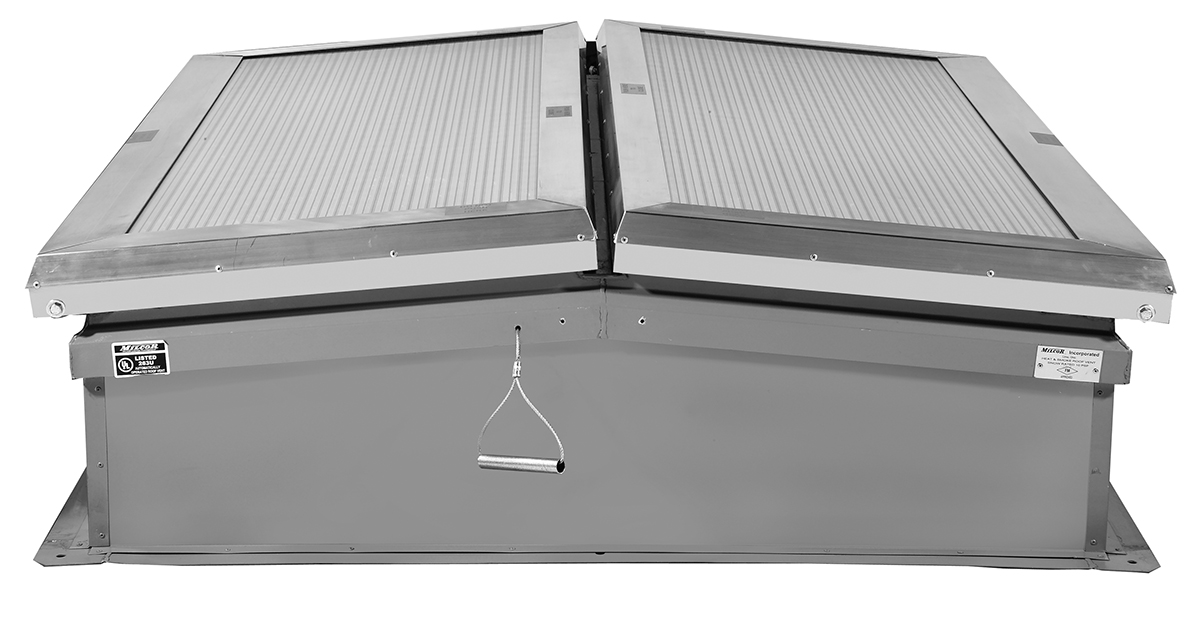

UL-SKY — Flat Panel Skylight

UL-SKY — Flat Panel Skylight

Specifications:

  • Material:
    • UL-SKY: 16 gauge galvanized steel
    • UL-SKYA: .090 aluminum
  • Finish:
    • Galvanized Steel: Mill Finish
    • Aluminum: Mill Finish
  • Cover:
    • Damage resistance, light admitting, polycarbonate panels surrounded by an extruded aluminum frame.
  • Curb:
    • 13 ½” in height with 3 ½” pre-drilled mounting flanges and counterflashing with 1” thick exterior fiberboard insulation
  • Gasket:
    • Polyurethane Foam Gasket adhered to the entire perimeter of curb
  • Hinges:
    • Steel Pintle Hinge
  • Springs:
    • Torsion Coil Springs
  • Dampeners:
    • Hydraulic dampeners to control cover opening speed and prevent over-travel
  • Latches:
    • Latch designed to open automatically with parting of single 360 degree fusible link or manually with interior and exterior pull release handles without disturbing the fusible link.
  • Hardware:
    • All hardware is zinc plated (stainless steel hardware optional)
  • Operation:
    • Covers automatically spring open to approximately 90 degrees in the event of fire, being actuated by the parting of a single UL-listed 360 degree F fusible link, automatically locking in the fully opened position

Standard Sizes and Model Number

Model Materials Dimensions Lbs Submittal Data Installation Instructions Specs LEED
UL-SKY-4848 Galvanized Steel 4'0" x 4'0" 284
UL-SKY-4860 Galvanized Steel 4'0" x 5'0" 337
UL-SKY-4872 Galvanized Steel 4'0" x 6'0" 390
UL-SKY-4884 Galvanized Steel 4'0" x 7'0" 443
UL-SKY-4896 Galvanized Steel 4'0" x 8'0" 496
UL-SKY-5448 Galvanized Steel 4'6" x 4'0" 311
UL-SKY-5460 Galvanized Steel 4'6" x 5'0" 364
UL-SKY-5472 Galvanized Steel 4'6" x 6'0" 417
UL-SKY-5484 Galvanized Steel 4'6" x 7'0" 470
UL-SKY-5496 Galvanized Steel 4'6" x 8'0" 523
UL-SKY-6048 Galvanized Steel 5'0" x 4'0" 337
UL-SKY-6060 Galvanized Steel 5'0" x 5'0" 390
UL-SKY-6072 Galvanized Steel 5'0" x 6'0" 443
UL-SKY-6084 Galvanized Steel 5'0" x 7'0" 496
UL-SKY-6096 Galvanized Steel 5'0" x 8'0" 549
UL-SKY-6648 Galvanized Steel 5'6" x 4'0" 364
UL-SKY-6660 Galvanized Steel 5'6" x 5'0" 417
UL-SKY-6672 Galvanized Steel 5'6" x 6'0" 470
UL-SKY-6684 Galvanized Steel 5'6" x 7'0" 523
UL-SKY-6696 Galvanized Steel 5'6" x 8'0" 576
UL-SKY-7248 Galvanized Steel 6'0" x 4'0" 390
UL-SKY-7260 Galvanized Steel 6'0" x 5'0" 443
UL-SKY-7272 Galvanized Steel 6'0" x 6'0" 496
UL-SKY-7284 Galvanized Steel 6'0" x 7'0" 549
UL-SKY-7296 Galvanized Steel 6'0" x 8'0" 602
UL-SKYA-4848 Aluminum 4'0" x 4'0" 202
UL-SKYA-4860 Aluminum 4'0" x 5'0" 240
UL-SKYA-4872 Aluminum 4'0" x 6'0" 278
UL-SKYA-4884 Aluminum 4'0" x 7'0" 316
UL-SKYA-4896 Aluminum 4'0" x 8'0" 354
UL-SKYA-5448 Aluminum 4'6" x 4'0" 221
UL-SKYA-5460 Aluminum UL-SKYA-5460 259
UL-SKYA-5472 Aluminum 4'6" x 6'0" 297
UL-SKYA-5484 Aluminum 4'6" x 7'0" 335
UL-SKYA-5496 Aluminum 4'6" x 8'0" 373
UL-SKYA-6048 Aluminum 5'0" x 4'0" 240
UL-SKYA-6060 Aluminum 5'0" x 5'0" 278
UL-SKYA-6072 Aluminum 5'0" x 6'0" 316
UL-SKYA-6084 Aluminum 5'0" x 7'0" 354
UL-SKYA-6096 Aluminum 5'0" x 8'0" 391
UL-SKYA-6648 Aluminum 5'6" x 4'0" 259
UL-SKYA-6660 Aluminum 5'6" x 5'0" 297
UL-SKYA-6672 Aluminum 5'6" x 6'0" 335
UL-SKYA-6684 Aluminum 5'6" x 7'0" 373
UL-SKYA-6696 Aluminum 5'6" x 8'0" 410
UL-SKYA-7248 Aluminum 6'0" x 4'0" 278
UL-SKYA-7260 Aluminum 6'0" x 5'0" 316
UL-SKYA-7272 Aluminum 6'0" x 6'0" 354
UL-SKYA-7284 Aluminum 6'0" x 7'0" 391
UL-SKYA-7296 Aluminum 6'0" x 8'0" 429
