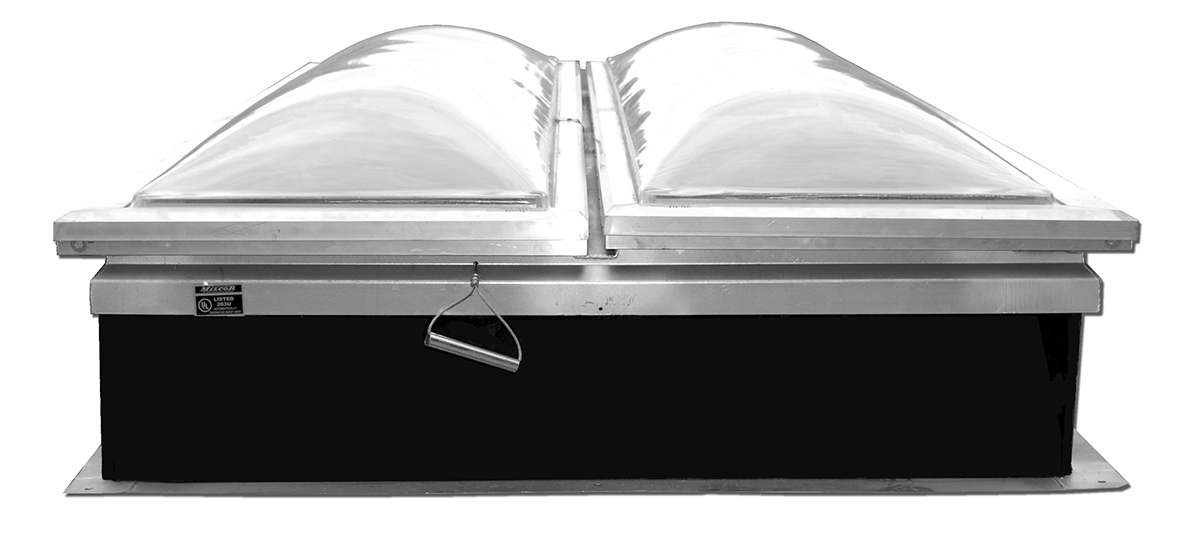

UL-SEE — Domed Skylight

UL-SEE — Domed Skylight

Specifications:

  • Material:
    • UL-SEE: 16 gauge galvanized steel
    • UL-SEEA:.090 aluminum
  • Finish:
    • Galvanized Steel: Mill Finish
    • Aluminum: Mill Finish
  • Cover:
    • Damage resistance, light admitting, 1/8” polycarbonate outer dome with 1/8” polycarbonate inner dome, surrounded by an extruded aluminum frame.
  • Curb:
    • 13 ½” in height with 3 ½” pre-drilled mounting flanges and counterflashing with 1” thick exterior fiberboard insulation
  • Gasket:
    • Polyurethane Foam Gasket adhered to the entire perimeter of curb
  • Hinges:
    • Steel Pintle Hinge
  • Springs:
    • Torsion Coil Spring operators to open against a 10 psf snow or wind load
  • Dampeners:
    • Hydraulic dampeners to control cover opening speed and prevent over-travel
  • Latches:
    • Latch designed to open automatically with parting of single 360 degree fusible link or manually with interior and exterior pull release handles without disturbing the fusible link. Designed to hold covers closed when subjected to 30 psf uplift pressure
  • Hardware:
    • All hardware is zinc plated (stainless steel hardware optional)
  • Operation:
    • Covers automatically spring open to approximately 90 degrees in the event of fire, being actuated by the parting of a single UL-listed 360 degree F fusible link, automatically locking in the fully opened position
  • Certifications:
    • UL 793 Listed
    • UL 790 Certified

Standard Sizes and Model Number

Model Dimensions Lbs Submittal Data Installation Instructions Specs LEED
UL-SEE-4848 4'0" x 4'0" 240
UL-SEE-4860 4'0" x 5'0" 285
UL-SEE-4872 4'0" x 6'0" 330
UL-SEE-4884 4'0" x 7'0" 370
UL-SEE-4896 4'0" x 8'0" 420
UL-SEE-5448 4'6" x 4'0" 265
UL-SEE-5460 4'6" x 5'0" 320
UL-SEE-5472 4'6" x 6'0" 355
UL-SEE-5484 4'6" x 7'0" 430
UL-SEE-5496 4'6" x 8'0" 480
UL-SEE-6048 5'0" x 4'0" 300
UL-SEE-6060 5'0" x 5'0" 355
UL-SEE-6072 5'0" x 6'0" 400
UL-SEE-6084 5'0" x 7'0" 455
UL-SEE-6096 5'0" x 8'0" 520
UL-SEE-6648 5'6" x 4'0" 335
UL-SEE-6660 5'6" x 5'0" 390
UL-SEE-6672 5'6" x 6'0" 440
UL-SEE-6684 5'6" x 7'0" 500
UL-SEE-6696 5'6" x 8'0" 565
UL-SEE-7248 6'0" x 4'0" 370
UL-SEE-7260 6'0" x 5'0" 425
UL-SEE-7272 6'0" x 6'0" 475
UL-SEE-7284 6'0" x 7'0" 545
UL-SEE-7296 6'0" x 8'0" 630
UL-SEEA-4848 4'0" x 4'0" 240
UL-SEEA-4860 4'0" x 5'0" 285
UL-SEEA-4872 4'0" x 6'0" 330
UL-SEEA-4884 4'0" x 7'0" 370
UL-SEEA-4896 4'0" x 8'0" 420
UL-SEEA-5448 4'6" x 4'0" 265
UL-SEEA-5460 4'6" x 5'0" 320
UL-SEEA-5472 4'6" x 6'0" 355
UL-SEEA-5484 4'6" x 7'0" 430
UL-SEEA-5496 4'6" x 8'0" 480
UL-SEEA-6048 5'0" x 4'0" 300
UL-SEEA-6060 5'0" x 5'0" 355
UL-SEEA-6072 5'0" x 6'0" 400
UL-SEEA-6084 5'0" x 7'0" 455
UL-SEEA-6096 5'0" x 8'0" 520
UL-SEEA-6648 5'6" x 4'0" 335
UL-SEEA-6660 5'6" x 5'0" 390
UL-SEEA-6672 5'6" x 6'0" 440
UL-SEEA-6684 5'6" x 7'0" 500
UL-SEEA-6696 5'6" x 8'0" 565
UL-SEEA-7248 6'0" x 4'0" 370
UL-SEEA-7260 6'0" x 5'0" 425
UL-SEEA-7272 6'0" x 6'0" 475
UL-SEEA-7284 6'0" x 7'0" 545
UL-SEEA-7296 6'0" x 8'0" 630
