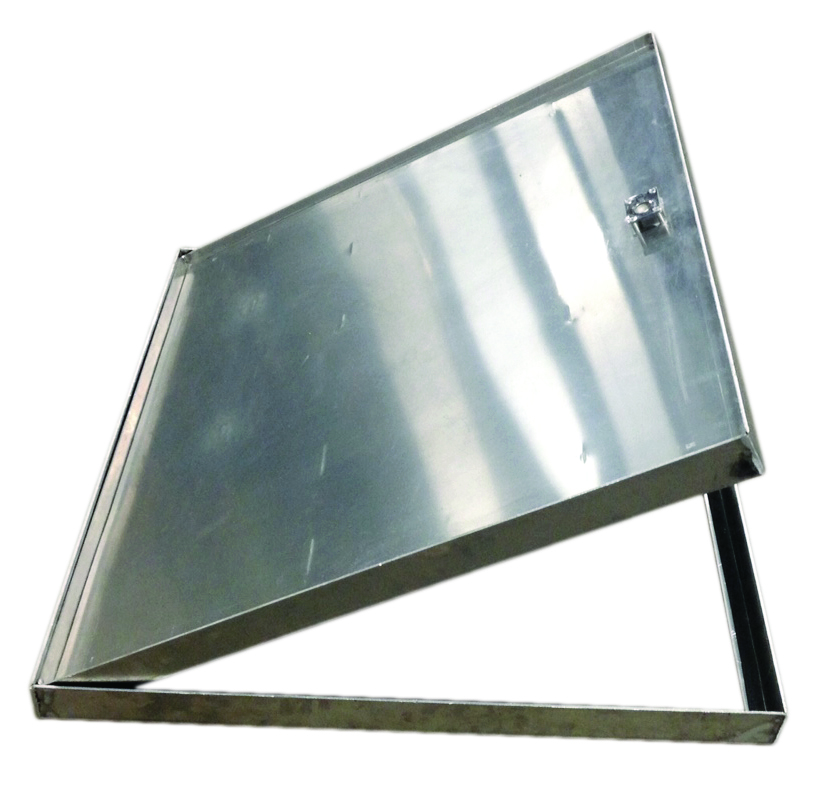

Styles F/T/Z — Non Security Aluminum Floor Doors

Styles F/T/Z — Non Security Aluminum Floor Doors

Specifications:

  • Material:
    • F: 1/4” Aluminum Tread Plate and extruded aluminum frame
    • T & Z: 1/8” Aluminum Plate and extruded aluminum frame
  • Finish:
    • Mill Finish
  • Cover:
    •  F: Diamond patterned safety tread plate designed to support minimum of 200 psf live load.
    • T: 1/8” Recessed for floor tile to support minimum of 200 psf live load
    • Z: 11/16” Recessed for terrazzo to support minimum of 200 psf live load
  • Frame:
    •  F & T: 1/8” Extruded aluminum frame w/ integral masonry anchors
    • Z: 1/8” fully welded and mitered aluminum frame w/ welded masonry anchors
  • Gasket:
    • 1/16” Neoprene gasket adhered to frame ledge
  • Latch:
    • NONE
  • Handle:
    • Lift Ring for easy access
  • Lift Assistance:
    • NONE
  • Hardware:
    • Stainless steel

Standard Sizes and Model Number

Model Dimensions Lbs Submittal Data Installation Instructions LEED
F-62 2'0" x 2'0" 30
F-64 2'6" x 2'6" 35
F-66 3'0" x 2'6" 40
F-68 3'0" x 3'0" 45
T-62 2'0" x 2'0" 30
T-64 2'6" x 2'6" 35
T-66 3'0" x 2'6" 40
T-68 3'0" x 3'0" 45
Z-62 2'0" x 2'0" 40
Z-64 2'6" x 2'6" 45
Z-66 3'0" x 2'6" 50
Z-68 3'0" x 3'0" 55
