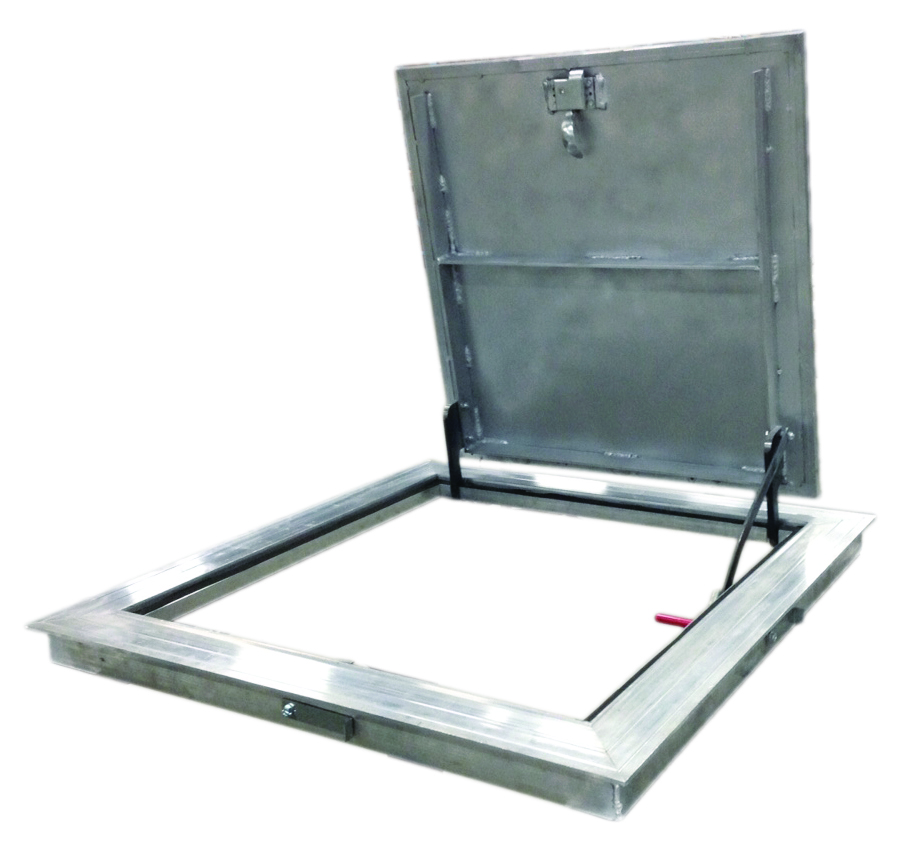

Styles F and T — Security Aluminum Floor Doors

Styles F and T — Security Aluminum Floor Doors

Specifications:

  • Material:
    • F: 1/4” Aluminum Tread Plate and extruded aluminum frame
    • T: 1/4” Aluminum Plate and extruded aluminum frame
  • Finish
    • Mill Finish
  • Cover:
    •  F: Diamond patterned safety tread plate designed to support 150 psf live load.
    • T: 1/4” Recessed smooth cover with extruded tile stop for floor tile to support 150 psf live load
  • Frame:
    • F & T: 1/4” Extruded aluminum frame with strap-type anchors bolted onto frame
  • Gasket:
    • 1/16” Neoprene gasket adhered to frame
  • Latch:
    • Snap Latch
  • Handle:
    • Inside handle and removable outside T handle
  • Lift Assistance:
    • Torsion Bar
  • Hardware:
    • Zinc plated

Standard Sizes and Model Number

Model Dimensions Lbs Submittal Data Installation Instructions LEED
F-2424 2'0" x 2'0" 60
F-3030 2'6" x 2'6" 75
F-3630 3'0" x 2'6" 85
F-3636 3'0" x 3'0" 95
F-4848 4'0" x 4'0" 160
F-4872 4'0" x 6'0" 220
F-6060 5'0" x 5'0" 230
T-2424 2'0" x 2'0" 66
T-3030 2'6" x 2'6" 85
T-3630 3'0" x 2'6" 95
T-3636 3'0" x 3'0" 106
T-4848 4'0" x 4'0" 180
T-4872 4'0" x 6'0" 246
T-6060 5'0" x 5'0" 258
